Dzus Fasteners

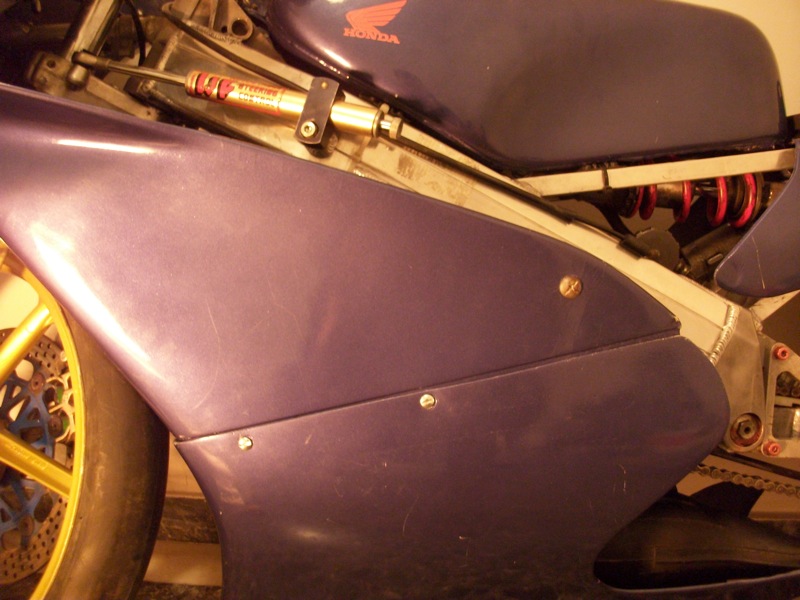

Quarter turn fasteners are essential for track/ racing bikes and save a lot of time and effort. Dzus bolts are the most commonly used fasteners and come in a variety of types (spring, slip-on, riveted etc) to cover any application needed.
Position of the Dzus spring plates should be right behind the back panel or just slid over it if your stud doesn't have the sufficient length needed.











Mark the position and drill 3mm holes for the rivets and about an 11mm hole for the flared spring plate. On the front fering panel, use a nylon washer after you've inserted the stud as this will keep the stud in place when the panel is removed from the bike.
