I have finished the rebuild on a used lathe that I bought about a month back. It is a well used and in bad shape Valex BV20 model. Quite a few issues were repaired and it now has a new paint theme. It was a very fruitful rebuild that taught me a lot of useful stuff and somewhat expanded my knowledge on several aspects.
Here are a few random pics from the rebuild.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhy4IrTGzAjgGlzsfRB789ROe6HEH0WhYLa-2uCKrM38qm4Qbs5o0hY8ivoK7zEDxlMCe_G0GILSFNccFkKyxAtgm63nlnUAxg6hFYtJTZCMTHkXlsqOAv1XKrRhCokQalv3YDFHI89FmdI/s1600/valexBv20_03.JPG)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEj2PQHp2AM8m4Fyv5HJ5nCNriF20Gm645H-8ZgmWJGdygaL41QFFl4RiGU7EPkW9xpvuCzfE746f6IIJyd80PssJbLFDOVaE8yz2cOBxpuH9qAdogZYxTJsA7wOpH3ebcN3aNnl3Ceh1lRg/s1600/tornos_dixronos_01.JPG)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEggQJ2BZX0C2qL2EDwbUhfX1W043F3wT3sktF6GlwXBP3lXhrLjWPiUZgrhATWTd2QN0MHr8cz7jRp8vxS2l3UEZj2jnBHU9oVy3qlsl7voa3TznFhcovbvr0j3RhiUt4GaBuXK7P0y5lQw/s1600/IMGP1146.JPG)
Here are a few random pics from the rebuild.
Bolting parts together again
...while taking some measurements in the process.

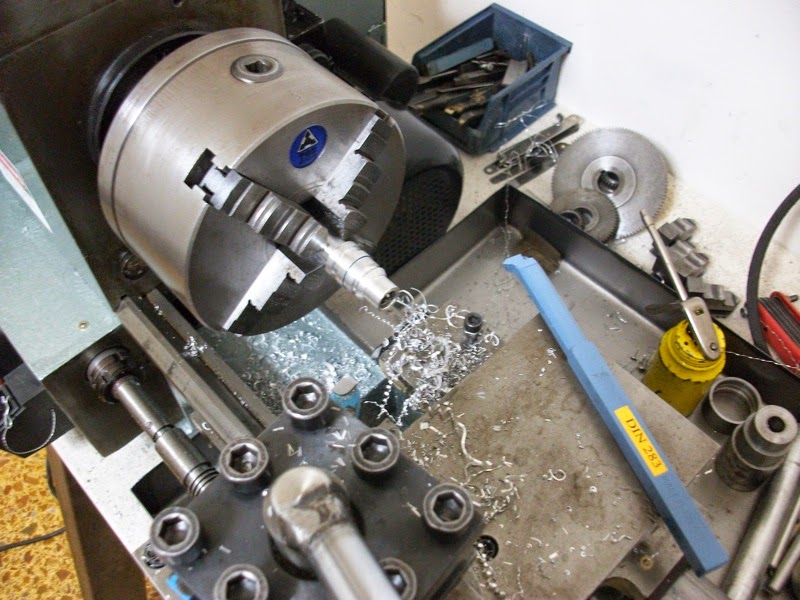

And the first chips!
The end result now looks like this.
Nice work. I wish I had space for a lathe. :(
ReplyDeleteLet's see what you do with it.
where did you find a replacement spindle speed and gear selection decal?
ReplyDeleteHi.
DeleteI found the manual and pics from other peoples lathes and a friend of mine reproduced the photos and printed it in sticker.
